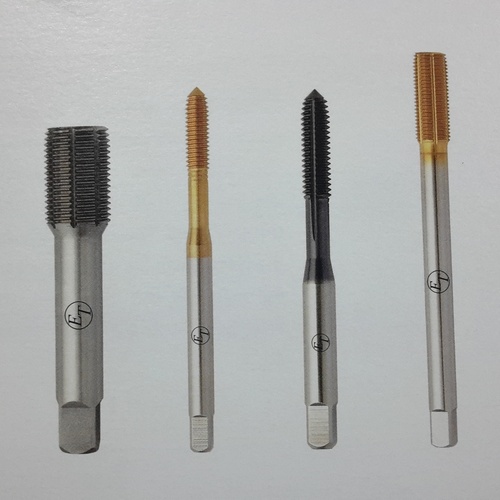

Thread Forming Taps
Product Code : ET-01
Product Specification
These Taps are designed for machine Tapping in ductile materials. Also known as Cold Forming Taps, Roll Forming Tap or Fluteless Tap. These have no Flutes or Cutting edges but have special roll forming lobes with circular lands and short taper leads for through or blind holes. Since the displacement of metal has to be considered, specially calculated pre-tapping drill sizes are necessary.
For Tapping depths, more than twice the tap diameter, roll taps with oil grooves are recommended. These grooves are recommended. These grooves provide a passage for the lubricant and also for the lubricant and also for the escape of air and oil to avoid a piston effect in blind holes.

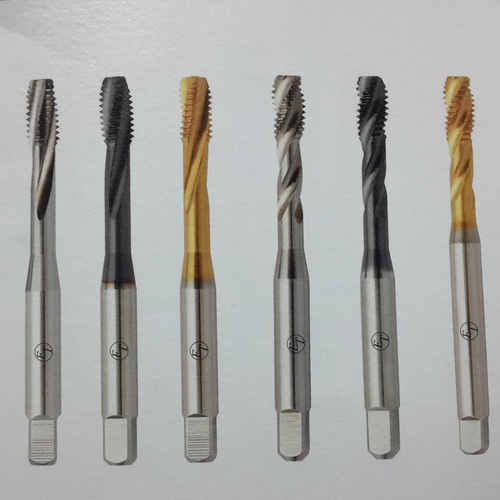

Spiral Fluted Taps
Product Code : ET02
Brand Name : ET
Product Specification
Spiral fluted Taps are designed primarily for machine tapping in blind holes. They are suitable for tapping in soft materials such as aluminium and soft steels, which produce long and stringy strips. The shear action provided by he spiral flutes draws the chip out of the hole, allowing greater depth of threading without chip clogging.
Our Spiral Fluted taps are available in low and fast spiral combination. In fast spiral fluted taps ( 35 degree ) thread length is shorter than thread length in other types of taps.

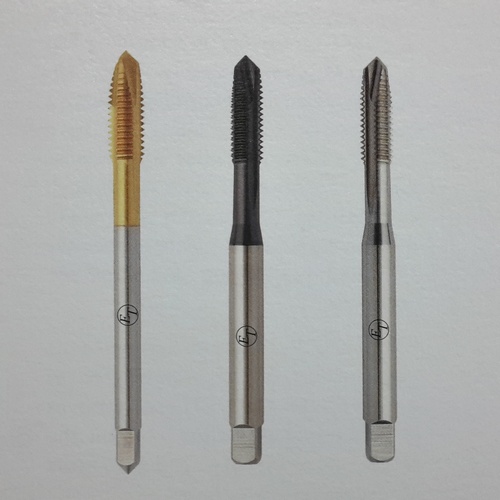

Spiral Pointed Taps
Product Code : ET03
Brand Name : ET
Product Specification
Our Taps specializes in application taps for various applications. Spiral Point Taps or Gun Nose Tap with 3-4 Threads chamfer is recommended for tapping in Through holes. These Taps normally push the chips down the hole and are suitable for materials like aluminium, stainless steel, general purpose steel, forged steel etc.

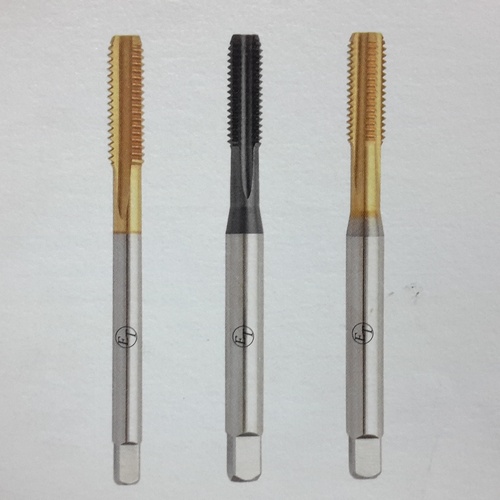

Cast Iron Tapping Taps
Product Code : ET04
Brand Name : ET
Product Specification
We have developed application taps for cast Iron Tapping, having a special geometry and thread tolerance which is suitable for Tapping in cast Iron and also in short chipping S.G. Iron. These Taps have chamfer of 2 Thread lengths and can be used for both through holes and blind holes.

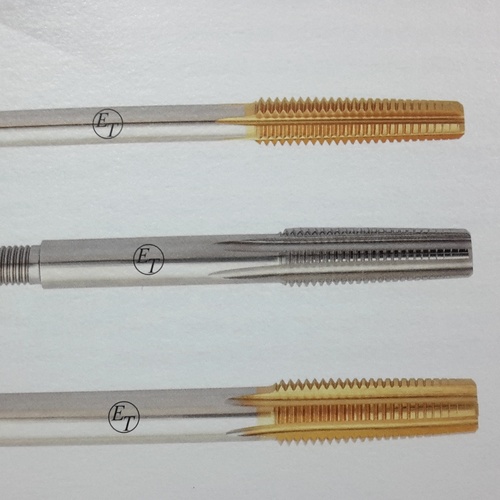

Nut Tapping Tap
Product Code : ET05
Brand Name : ET
Product Specification
Our Nib Taps are specially made for automatic Tapping of Nuts in high speed Nut Tapping Machines in materials like stainless steel etc. These Taps have appropriate geometry and flute profile which deliver high quality and consistency in threading. They can also be designed to specific tolerances and applications to suit customers working conditions.

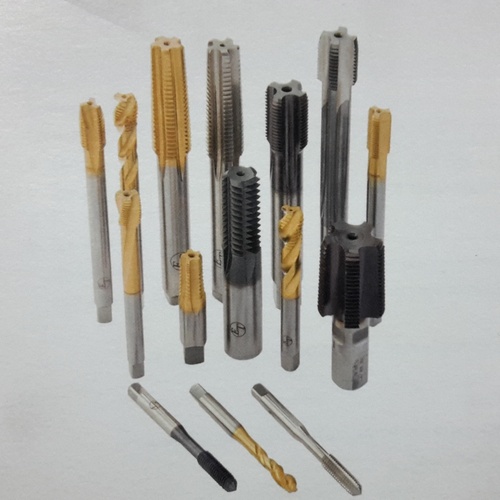

Thread Milling Cutters
Product Code : ET06
Brand Name : ET
Product Specification
In addition to standard range of Taps , We also manufacture taps as per drawings, special dimensions & tolerance class on specific request from the customer. We also manufacture Thread Milling Cutters
