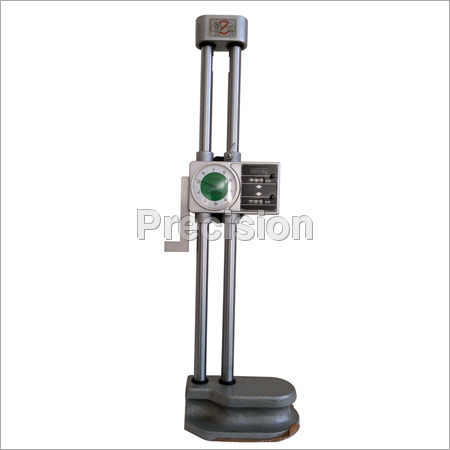

Double Column Dial Digit Type Height Gauge
Product Code : HG 14
Brand Name : Precision
Product Specification
Double Column Dial Digit Type Height Gauge
- Dual direction counter for up and down movement
- Zero setting of the counter at any position
- Tungsten carbide tipped knife- edge scriber
- Hand wheel with rack on the beam for precise measurement
| Range | Resolution | Accuracy |
| 0-300 mm | 0.01 mm | 0.04 mm |

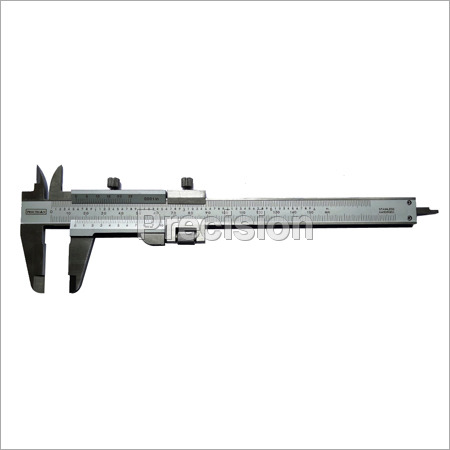

Vernier Caliper (Standard)
Product Code : VC 07
Brand Name : Precision
Product Specification
Vernier Caliper (Standard)
- Made of fully hardened stainless steel
- All measuring faces are ground & lapped for extreme accuracy
- Graduations "Laser Marked"
- Two convex guide ways on the body to avoid abrasion of the graduation
- Vernier scale face angle (14 degree) provides easy reading
- Handy structure,stable & smooth operation
- Accuracies as per IS.3651 (Part ||)
- Packed in moulded box with hard sponge liner
- Four way measurement:Inside,outside,depth & step
- With five adjustments
- Locking screw:Non detachable
| Range | Resolution |
| 0-150 mm/0-6" | 0.02 mm/0.001" |
| 0-200 mm/0-8" | 0.02 mm/0.001" |
| 0-300 mm/0-12" | 0.02 mm/0.001" |
| 0-450 mm/0-18" | 0.02 mm/0.001" |
| 0-600 mm/0-24" | 0.02 mm/0.001" |
Dial Caliper (Premium)
Product Code : VC 07
Brand Name : Precision
Product Specification
Dial Caliper (Premium)
- All measuring faces are ground & lapped for extreme accuracy
- Accuracies as per IS.3651 (Part ||)
- Made of fully hardened stainless steel
- Graduations "Laser Marked"
- With thumb roller for precious movements
- Rotating dial with lock for easy zero setting
- New design dial movement for smooth sliding & shock proof
- Clamping screw atop the slider
| Range | Resolution |
| 0-150 mm | 0.02 mm |
| 0-200 mm | 0.02 mm |
| 0-300 mm | 0.002 mm |
| Range | Resolution |
| 0.6" | 0.001" |
| 0.8" | 0.001" |

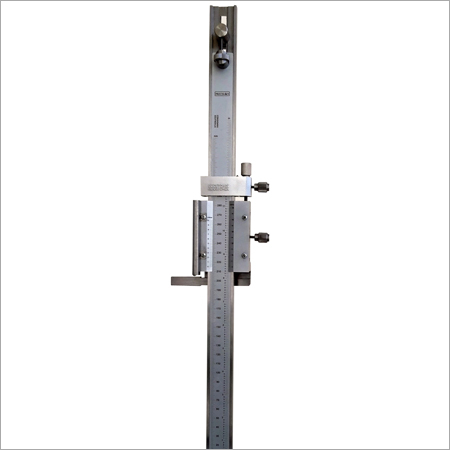

Mechanical Height Gauge
Product Code : TMI 15
Brand Name : Precision
Product Specification
We feel proud to introduce ourselves as a manufacturer, exporter and supplier of an excellent quality range of Mechanical Height Gauge. The offered gauge is manufactured at our in-house manufacturing units using superior grade raw materials and pioneering technology under the supervision of our deft technocrats in sync with set market quality standards. The provided gauge is used to determine height of the object. Along with this, clients can avail this Mechanical Height Gauge from us in various specifications as per their needs at most affordable prices.
Features:
- Easy to use
- Application specific design
- Light weight
- Enhanced durability
Dial Test Indicator (Level Type Dial)
Product Code : LI 17
Brand Name : Precision
Product Specification
Dial Test Indicator (Level Type Dial)
- No clutch type for automatic reversal of measurement direction
- High sensitivity and quick response because of jeweled bearing carbide contact point
- Useful for easy and accurate measurement of narrow or recessed areas
- Stem of 8 mm, contact point of 2 mm (Carbide)
| Range | Reading | Resolution |
| 0.08 mm | 0-40-0 | 0.01 mm |

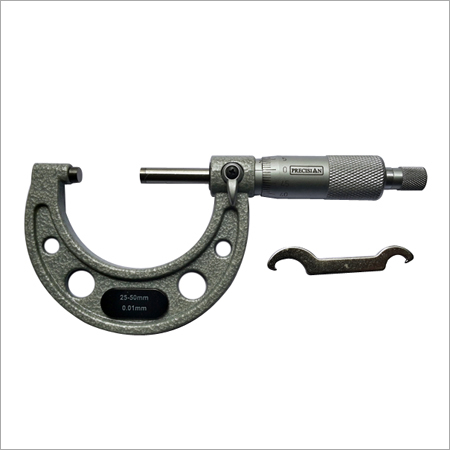

Outside Micrometer
Product Code : VC 07
Brand Name : Precision
Product Specification
Outside Micrometer
- Spindle hardened & precision thread ground
- Carbide tipped measuring faces lapped to mirror finish
- Heat insulated 'U' shaped frame
- Accuracies as per IS.2967
- Locking Clamp
- Ratchet stop for accurate repetitive readings
- Clear Laser mark graduation on satin chroma finish thimble
- Packed in moulded box with hard sponge inside
| Range | Resolution |
| 0-25 mm | 0.01 mm |
| 25-50 mm | 0.01 mm |
| 50-75 mm | 0.01 mm |
| 75-100 mm | 0.01 mm |
| 100-125 mm | 0.01 mm |
| 125-150 mm | 0.01 mm |
| Range | Resolution |
| 150-175 mm | 0.01 mm |
| 175-200 mm | 0.01 mm |
| 0-1" | 0.0001" |
| 1-2" | 0.0001" |
| 2-3" | 0.0001" |
| 3-4" | 0.0001" |
| 0-25 mm | 0.001 mm |
Digital Height Gauge
Product Code : TMI 16
Brand Name : Precision
Product Specification
With our endeavor is to attain full customer satisfaction, we are indulged in offering the paramount quality Digital Height Gauge. The provided gauge is highly applauded among our clients owing to its elevated durability and seamless finish and is extensively used to measure height. The offered gauge is precisely manufactured by our adept technocrats utilizing top-notch quality raw materials and cutting-edge methodology in compliance with set industrial quality standards. Available in numerous specifications as per the requirements of clients, this Digital Height Gauge is offered by us at highly competitive prices.
Features:
- Sturdy construction
- Corrosion resistance
- Ruggedness
- Precisely designed

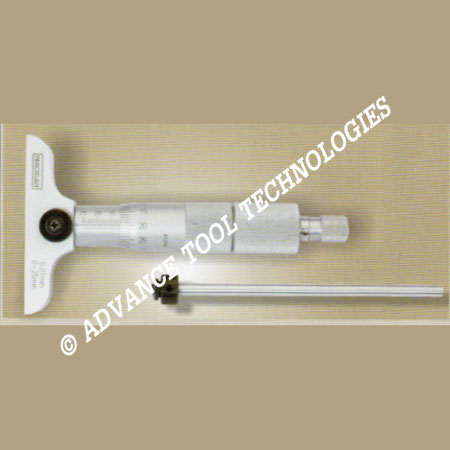

Depth Micrometer
Product Code : -
Brand Name : Precision
Product Specification
Depth Micrometer
- Provided with interchangeable run through rods for depth measurement
- Spindle hardened and precision thread ground
- Carbide tipped measuring faces lapped to mirror finish
- Heat insulated 'U' shaped frame
- Accuracies as per IS-2967
- Ratchet stop for accurate repetition readings
- Locking clamp
- Clear laser mark graduation on satin chroma finish
- Packed in moulded box with hard sponge inside
| Range | Resolution |
| 0-25mm | 0.01 mm |

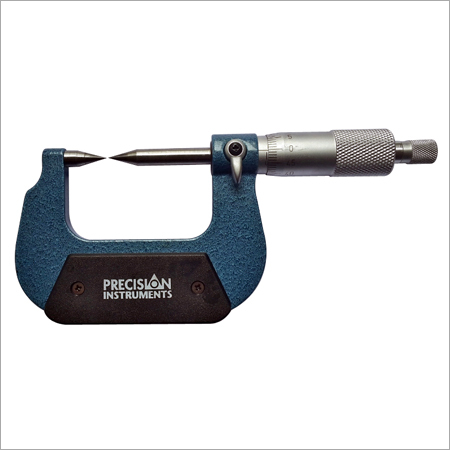

Point Micrometer
Product Specification
Point Micrometer
- With pointed measuring faces for measuring the web thickness of drills, taps, small grooves, key ways and other hard to reach dimensions
- Measuring point 30 degree
- The measuring points (carbide tipped) have approximately 0.3 mm radius
- Spindle hardened and precision thread ground
- Carbide tipped measuring faces lapped to mirror finish
- Heat insulated 'U' shaped frame
- Accuracies as per IS-2967
- Ratchet stop for accurate repetition readings
- Locking clamp
- Clear laser mark graduation on satin chroma finish
- Packed in moulded box with hard sponge inside
| Range | Resolution |
| 0-25mm | 0.01 mm |

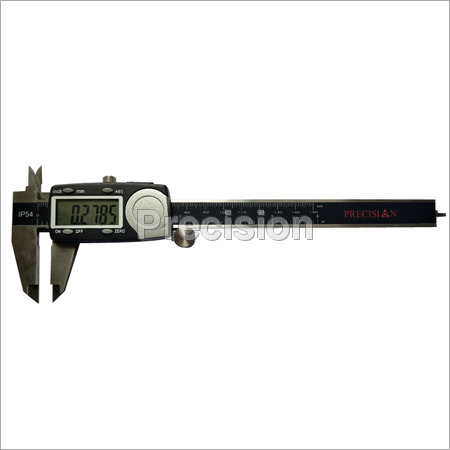

Digimatic Caliper
Product Code : VC 07
Brand Name : Precision
Product Specification
Digimatic Caliper
- Inch/Metric instant conversion
- Non contact measuring system unaffected by electrical or magnetic interference
- Operating temperature range 0 - 40 degree c
- Caliper manufactured from fully hardened , tempered stainless steel
- Zero point at any position of slide allowing comparative measurement
- Data output port to link into SPC processors & host computer system
- Battery 1.5V (SR/LR - 44)
- ON/OFF Switch
- Large Display
- High accuracy glass sensor technology on scale
- Thumb roller for easy movement
- Packed in good quality plastic moulded box
| Range | Resolution |
| 0-100 mm/4" | 0.01 mm/0.0005" |
| 0-150 mm/6" | 0.01 mm/0.0005" |
| 0-200 mm/8" | 0.01 mm/0.0005" |
| 0-300 mm/12" | 0.01 mm/0.0005" |
Dial Bore Gauge
Product Code : TMI 18
Brand Name : Precision
Product Specification
Dial Bore Gauge
- Equipped with 3 mm x 0.01 mm dial indicator
- 10-18 mm Dial Bore Gauge with miniature dial indicator
- With interchangeable anvils made of alloy steel
| Range | Resolution |
| 10-18 mm with Dial 0-3 mm | 0.01 mm |
| 18-35 mm with Dial 0-3 mm | 0.01 mm |
| 35-60 mm with Dial 0-3 mm | 0.01 mm |
| 50-150 mm with Dial 0-3 mm | 0.01 mm |
Analog Dial Indicator
Product Code : TMI 19
Brand Name : Precision
Product Specification
We are an unswerving corporation, engaged in offering an extensive range of Analog Dial Indicator. This indicator is mainly used in various electrical machines for indicating high voltage. Provided indicator is manufactured with high level of precision using excellent quality raw materials and innovative technology under the stern supervision of our dexterous professionals in sync with the set norms of quality. Apart from this, our valuable clients can avail this Analog Dial Indicator from us at market leading prices.
Features:
- Optimum functionality
- Durable finish
- Longer functional life
- Easy to use

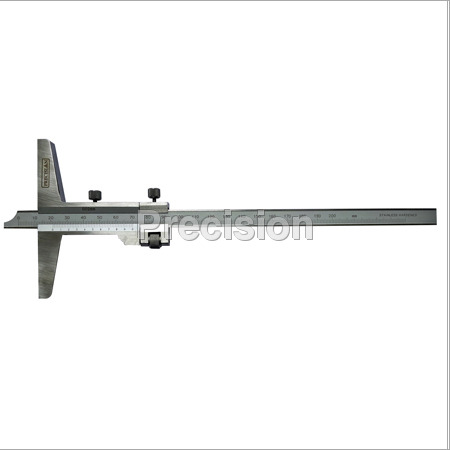

Vernier Depth Gauge
Product Code : TMI 05
Brand Name : Precision
Product Specification
Vernier Depth Gauge
- Made of fully hardened stainless steel
- All measuring faces are ground & micro lapped for extreme accuracy
- Graduations "Laser Marked"
- Accuracies as per IS.3651 (Part ||)
- Locking screw
| Range | Resolution |
| 0-200 mm | 0.02 mm |
| 0-300 mm | 0.02 mm |

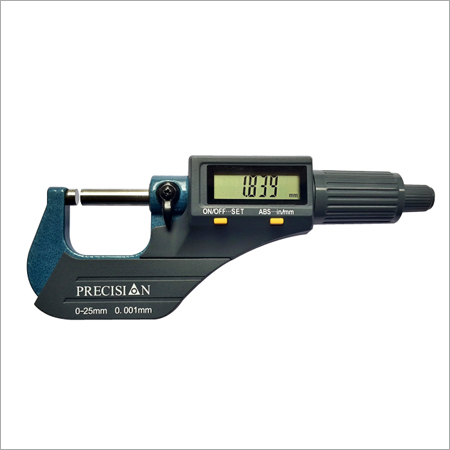

Digimatic Micrometer
Product Code : TMI 05
Brand Name : Precision
Product Specification
Digimatic Micrometer
- Large LCD readout
- INCH/MM/ABS/ZERO Switches
- Ratchet stop for constant measuring force
- Clear graduation on Satin chrome finish thimble
- Battery SR 44/LR 44
- Carbide tipped measuring faces lapped to mirror finish
- SPC data output facility
| Range | Resolution |
| 0-25mm /0-1 " | 0.001 mm /0.00005" |
Micrometer Head
Product Specification
Micrometer Head
- Used for checking the displacement on measuring fixtures,co-ordinate table,microscope,spark erosion & wire cut machines and other special purpose machines
- Spindle hardened & precision thread ground
- Carbide tipped measuring faces lapped to mirror finish
- Accuracies as per IS-2967
- Clear laser mark graduation on satin chroma finish
- With Clamping nut facility
| Range | Reading |
| 0-25mm | 0.01 mm |
Vernier Height Gauge
Product Code : HG 14
Brand Name : Precision
Product Specification
Vernier Height Gauge
- Stainless steel beam & measuring slide hardened ground for high accuracy
- Interchangeable carbide tipped scriber with metal holder for better grip
- Hardened & ground C.I heavy duty base for greater stability
- Fine adjustments
- Magnifying glass to eliminate error in reading
- Photo etch graduations on satin finish chroma plated scale
- Rack & pinion for easy & quick "zero" adjustment
| Range | Resolution | Accuracy |
| 0-300 mm/12" | 0.02 mm/0.001" | 0.04 mm |
| 0-450 mm/18" | 0.02 mm/0.001" | 0.04 mm |
| 0-600 mm/24" | 0.02 mm/0.001" | 0.05 mm |
Vernier Caliper (Premium)
Product Code : -
Brand Name : Precision
Product Specification
Vernier Caliper (Premium)
- Made of fully hardened stainless steel
- All measuring faces are ground & lapped for extreme accuracy
- Graduations "Laser Marked" with built in Vernier scale
- Two convex guide ways on the body to avoid abrasion of the graduation
- Vernier scale face angle (14 degree) provides easy reading
- Handy structure,stable & smooth operation
- Accuracies as per IS.3651 (Part ||)
- Packed in moulded box with hard sponge liner
- Four way measurement:Inside,outside,depth & step
- With five adjustments
- Locking screw:Non detachable
| Range | Resolution |
| 0-150 mm/0-6" | 0.02 mm/0.001" |
| 0-200 mm/0-8" | 0.02 mm/0.001" |
| 0-300 mm/0-12" | 0.02 mm/0.001" |
